South Sebastopol Highway Bridge

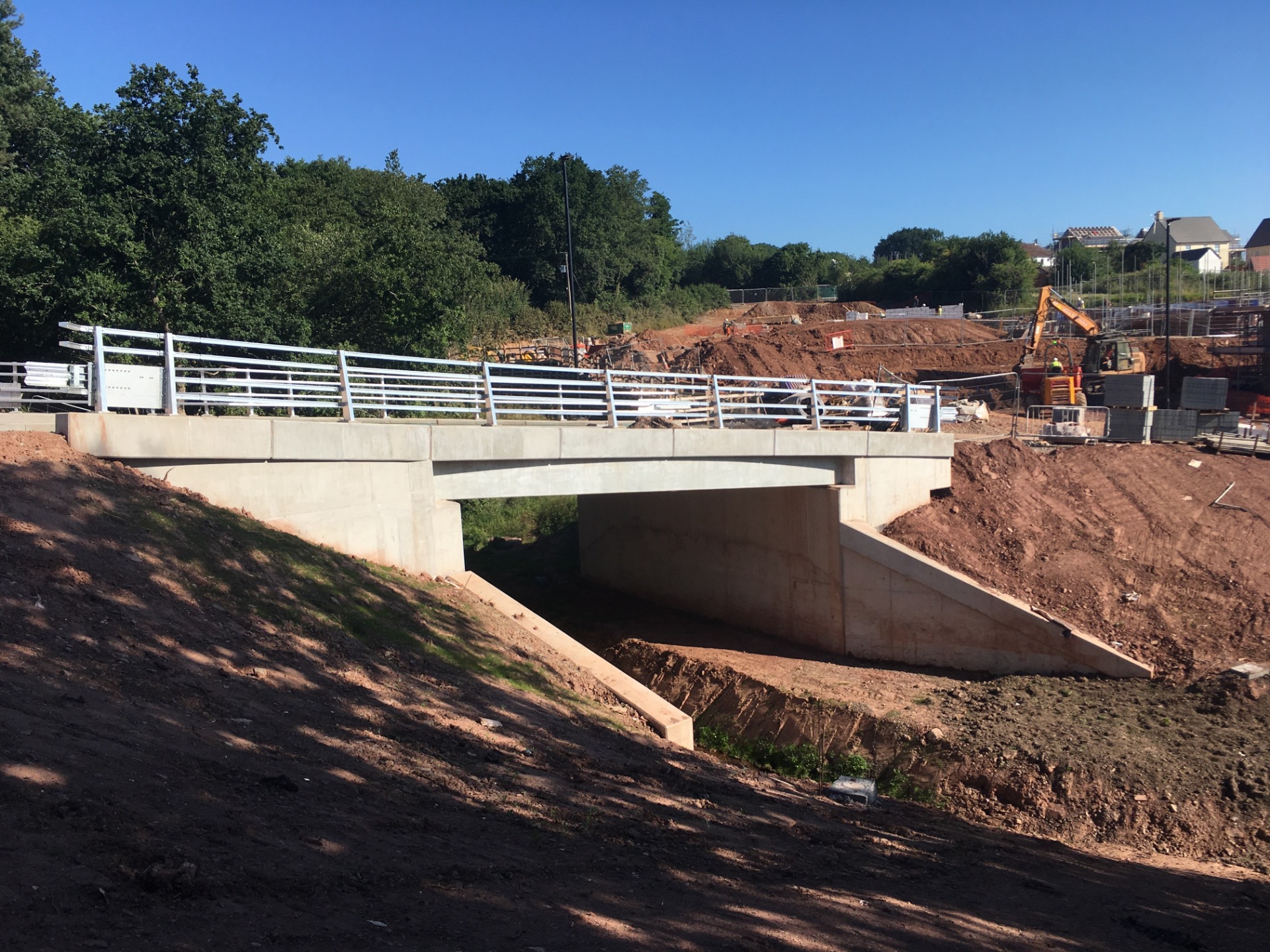

Taylor Wimpey have developed the site at South Sebastopol for residential end-use. As part of the infrastructure works for the development, it was proposed to construct a new Road bridge crossing over a watercourse in a ravine (Stream 5). The proposed structure is situated along the southern boundary of Phase I of the development area South Sebastopol is an integral single span highway bridge.
The bridge comprised of 11 precast prestressed beams (MY7). The abutments are founded a spread foundation supported directly on the mudrock.
The project has been completed in 2 phases.
I have been responsible for undertaking the concept, preliminary and detailed design of the bridge. I have prepared the AIP and gained approval from the TAA. During construction I have responded to RFIs and inspected the construction works providing quality assurance.

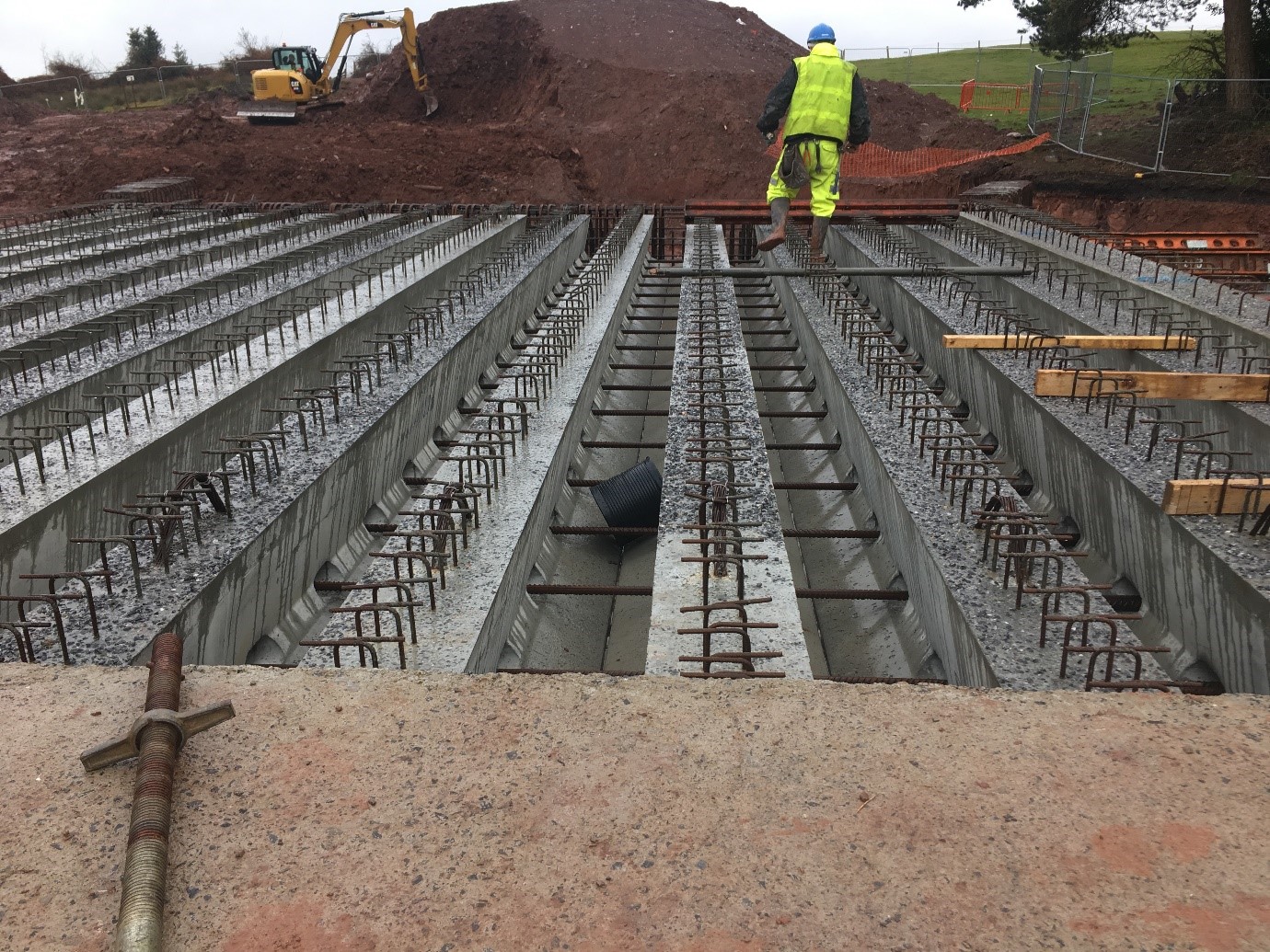

Precast Prestressed Beams (prior to laying the in-situ reinforcement for the the deck)
Crib wall designed at one side of the bridge to allow access along the ravine at high level
South Abutment under construction (fixing reinforcement). North Abutment completed in Phase 1

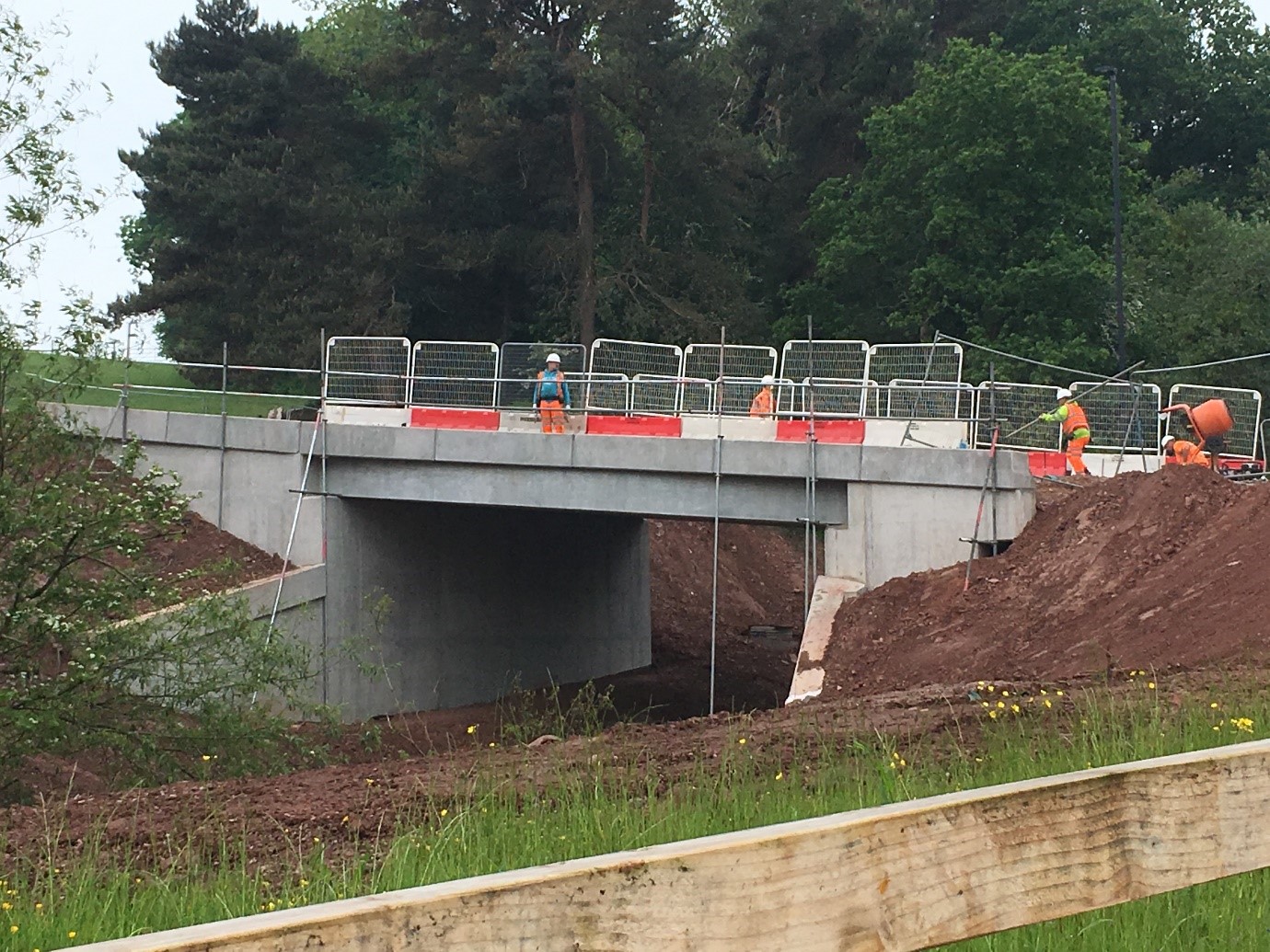

South Sebastopol Bridge under construction
